x-link

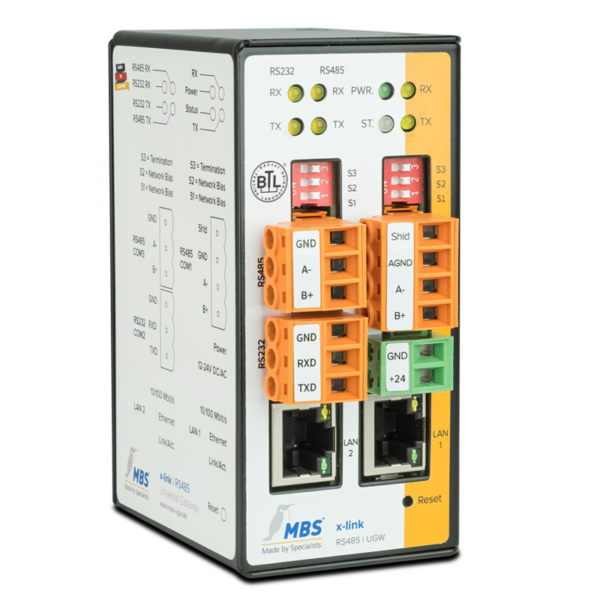

With two network connections, the x-link model can connect two separate IP areas.

The MBS Universal Gateways are based on one product platform and therefore offer exceptional versatility and flexibility for adapting to changing requirements – this advantage leads to particularly low overall costs: there is no need to purchase a new gateway, as new functions can simply be activated due to the adaptability. The new MBS Universal Gateways therefore have numerous functions that help our customers to reduce downtimes, shorten integration times and cut costs in the long term.

All the advantages at a glance:

• All important communication protocols are available

• Two network connections

• Two separate IP ranges

• Integrated web interface for configuration and analysis

• BACnet certificate from the independent certification body WSPCert

• Integrated real-time clock with battery backup

• microSD card up to 2GB with which e.g. trend log data can be recorded

• Upgradeable

• 25 – 2,500 data points (buy separately)

• Fast connection to serial or network-based communication protocols

• Robust metal housing for use in harsh control cabinet environments

• No moving parts such as fans or similar

• Monitoring of all functions with hardware and software watchdog

• The gateway restarts automatically after a power failure

• Optional commissioning on site
