Inputs/Outputs:
2x Special Input – dry contact
2x Digital Input – dry contact
2x Light output 230 V AC max. 4 A
1x Power Supply Output 24V DC max. 80 mA
Max. current for all the outputs is 8 A
Platform:
ARM Cortex-M4CommunicationInterface RS485 half-duplex
Communication:
Up to 128 devices on the bus
Protocols: Modbus
Baud rate: 2400 to 115200 bps
2x DALI interfaces (max 16 groups, integrated power supply with 40 mA current limit for each interface)
Up to 16 DALI ballasts per interface
Power supply:
230 V AC

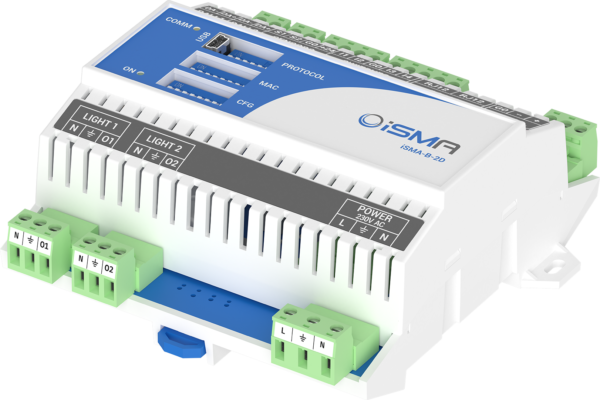

iSMA-B-2D has been built in order to control light in a single space in the building. The device is dedicated to controlling two separate DALI light areas with up to 32 DALI ballasts. Built-in two Special Inputs and two Digital Inputs are dedicated to connecting presence detectors and light switches.
Dedicated DIP-switch allows to activate predefined inputs configuration. Out of box the device allows to control the DALI ballasts by a common light switch and a common presence detector without the need of programming, which makes iSMA-B-2D the unique plug& play type device dedicated to DALI network control.
The controller is factory-equipped with the RS485 interface which is the physical layer for the most popular open communication protocol Modbus ASCII/RTU.
