Range: 12” to 32.8’ (30cm to 10m)
Frequency: 26 GHz.
Accuracy: ± 5mm
Dead band: 12” (30cm)
Beam angle: 22º
Configuration: Push button
Display type: LCD, dot matrix
Display units: Feet and meters
Display bar: Percent of span
Display graph: Echo signal curve
Supply voltage: 16-26 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: -40º to 266º, C: -40º to 130º
Pressure: -14.5 to 43.5 psi (-1 to 3 bar)
Enclosure rating: IP67
Process mount: 1 1/2” NPT
Certification: cTUVus, FCC
Compliance: CE, RoHS

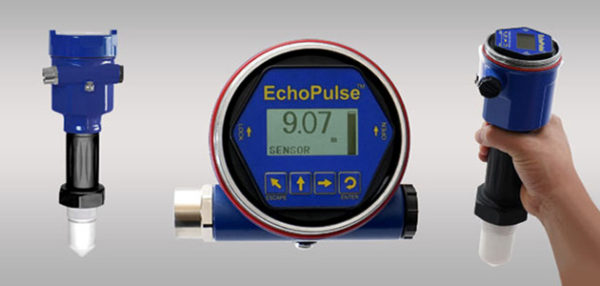

The general purpose 26 GHz. pulse radar level transmitter provides continuous level measurement up to 32.8’ (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy process conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting. Typical applications include chemical bulk storage and tanker trucks.
