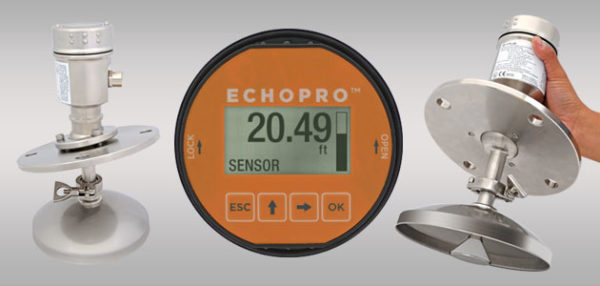

Flowline EchoPro® LR46 Egensikker Radar Nivåsensor for faste stoffer

APPLICATION

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 229.7’ (70m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact solids level sensor is intended for dry solid media including aggregates, grains, pellets, powders and building materials. Select this sensor for the most difficult process conditions with significant to extreme dust, and installation with an adjustable gimbal flange. For ease of installation, the parabolic antenna can be unclamped, inserted through the base of a riser, and reattached to the sensor. Typical applications include silos.

FEATURES

Parabolic antenna delivers high power RF signal strength
Configuration via push button display or HART communicator
Gimbal flange for easy positioning with the angle of repose
LCD displays level in feet or meters with percent of span bar
Optional display mode indicates the echo signal return curve
Rugged 316L stainless steel antenna and process mount
Fail-safe diagnostics with selectable signal fail-safe outputs
Recognition, storage and rejection of false echo signal returns
IP67 stainless enclosure with polycarbonate display window

Tilleggsinformasjon

Varianter	8” (196mm) parabola, 4” ANSI flange, 316L, 10” (246mm) parabola, 4” ANSI flange, 316L

Produsent

Flowline

Flowline designs, manufactures and markets the best level measurement and control instruments for your chemical, water, wastewater, oil and dry solid applications. We enable industrial manufacturers, chemical distributors, municipalities, and energy or food suppliers to safely and efficiently manage their contained liquid and solid assets. Our quality level solutions measure tank and silo inventories, automate containment processes, ensure workplace safety and protect the environment. Our customers are specifying engineers, system integrators, original equipment manufacturers, facility operators, instrumentation engineers and maintenance decision makers. We understand your requirements, have a breadth of solutions and readily share our level expertise. Flowline products are manufactured in the United States under our ISO 9001 and ATEX quality management system, and sold and supported worldwide by our technical stocking distribution partners. Flowline is reliable level measurement.
