Beskrivelse

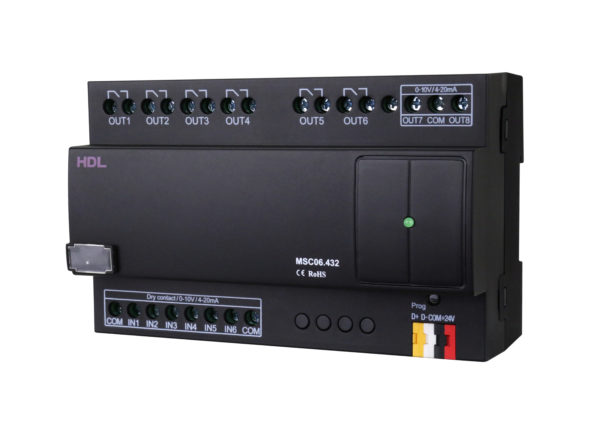

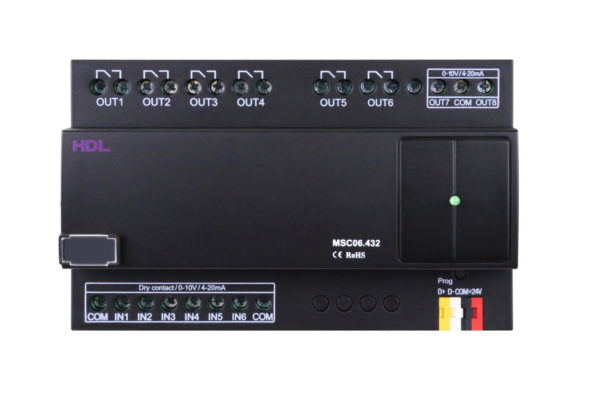

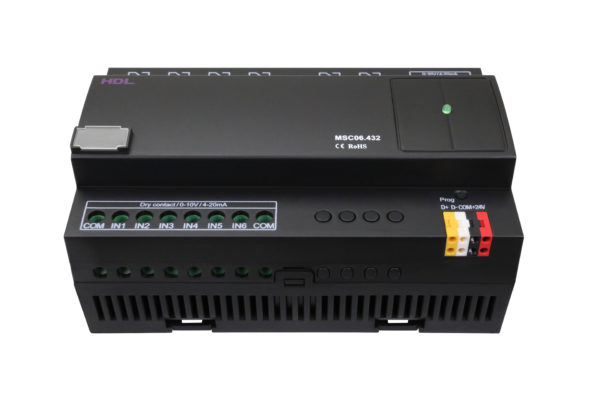

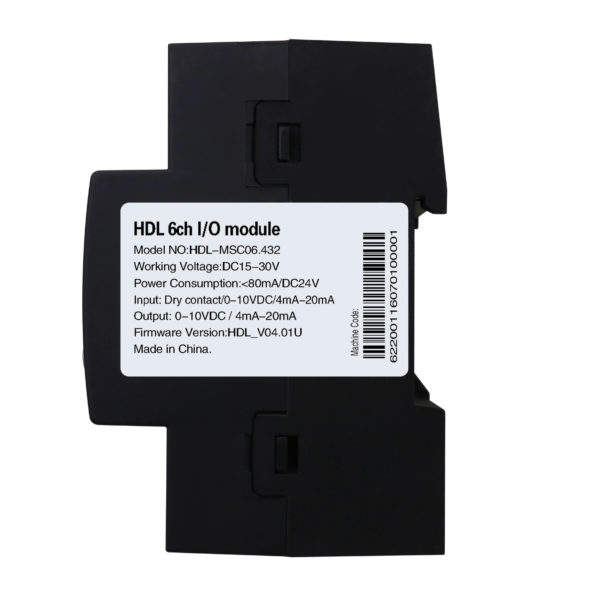

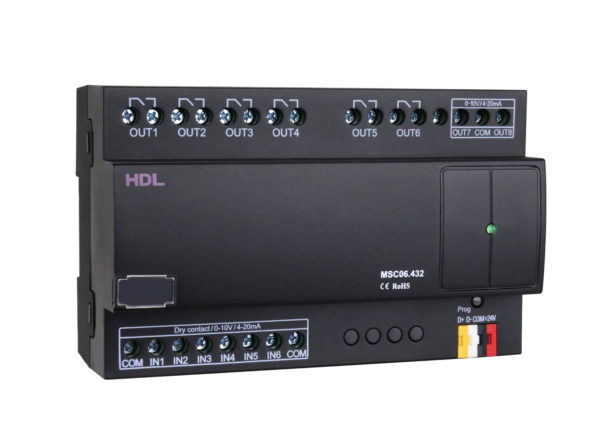

6 Kanals Input/output modul
Modulen har 6 kanaler rele output og støtter flere typer input signal (potensialfritt, 0-10V DC, 4-20mA). Parameterne stilles inn via HDL Buspro Setup Tool.
■ Supports input types: Dry contact,Voltage(0~10V DC), Analogy Voltage(0~10V DC), Current (4~20mA), Analogy current(4~20mA).
■ Analogy function enables the module to convert the value of voltage and current into other physical quantities, including temperature, luminance, humidity, pressure, etc. in order to control targets.
■ The input channel can be set as a mechanical switch and an electronic switch.
■ Each input channel can be set to control 20 targets.
■ Output 1 to Output 6 are 10A relay outputs. Output 7 and Output 8 are 0-10V output or 4mA-20mA
output, and can be set by users according to their preference.
■ Each input and output channel can be set separately.
■ Online upgrade via HDL Buspro Setup Tool.
■ Easy programming.
