Beskrivelse

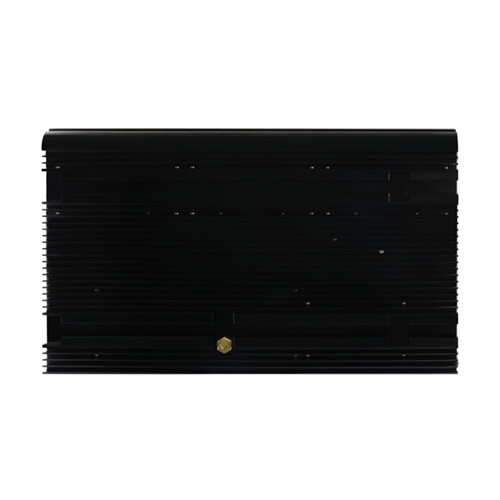

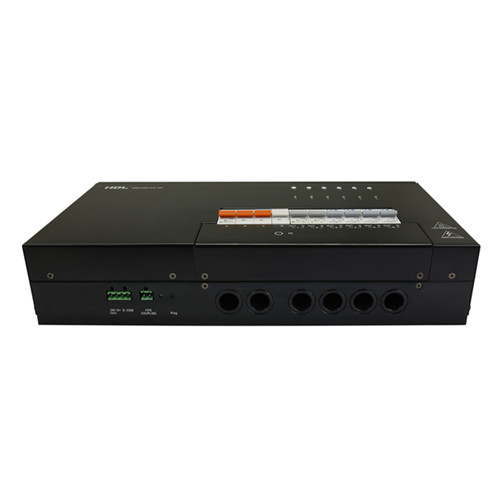

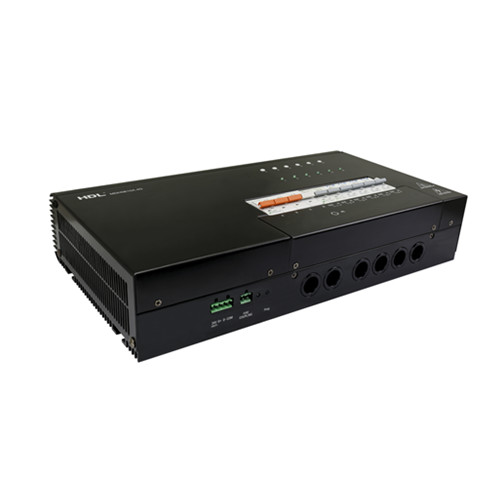

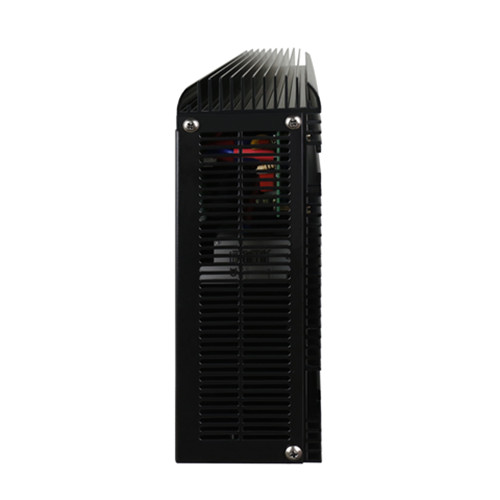

6CH 10A High Performance Dimmer for høy last
High Performance Dimmer is a dimmer based on MOSFET dimming technology. The dimmer has 6 output channels, which can drive high-power load. Manual buttons and status indicators are available for debugging device. With scene and sequence controller, the dimmer supports short-circuit protection and overheat protection. It is applicable to high performance dimming fields.
■ 6CH 10A MOSFET trailing dimming outputs.
■ Manual Bypass button and LED status indicator of each channel are available.
■ Low Threshold, High Threshold, Maximum Threshold are all available for each channel. Built-in 4 dimming curves.
■ With a scene controller, 6 separate zones can be set, 12 scenes can be set for each zone, and 6 sequences with 12-step scene can be set for Zone1.
■ The running scene can be set when the device starts. The specified security scene can be locked through an external switch signal, which is not subject to any channel control at this time.
■ A variety of device operation information can be displayed via software, for example power information, temperature information, channel information, etc.
■ Support short-circuit protection, overheat protection, grounding protection and configurable over-current protection.
■ Optional power supply of 24V DC, 120mA current to the HDL Buspro interface.
■ HDL Buspro communication is adopted. Device’s basic information, zone, scene, sequence and the device operation information can be displayed and edited.
